Thunder Series is a Laser wedding high speed blade, general purpose, divided into three quality degree, Standard,
Premium and Supreme. Including Standard segment, Turbo Segment and Vortex (Slanted Turbo-Segmented),
Hurricane (Alternating Standard and Turbo Segments), CYCLONE (Versatile Premium Slated Segmented), Tsunami
(Split Segmented MULTIPLE CUTTING), SYNTEX (ARIX Segment blade), HEAT (DRY CUTTING on concrete or asphalt) and
TORNADO (Vacuum Brazed Blade)


1.VORTEX GI --Slanted Turbo-Segmented


Vortex blades are turbo slant segmented designed for very aggressive cutting on a variety of hard materials. Fast smooth
cutting with a minimum of chipping, these blades can be used wet or dry.  lt) and TORNADO (Vacuum Brazed Blade)


Segment Height 10mm (.395)          Laser Welded

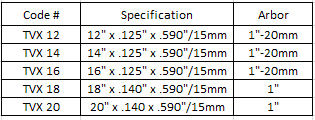

2.VORTEX GII鈥擲lanted Turbo-Segmented


Vortex GII is the second generation of Vortex blade, High rim segments offer longer life than generation I while cutting
concrete, masonry, stone, building materials and cultured stone,  these blades can be used wet or dry.


Segment Height 15mm (.590)          Laser Welded

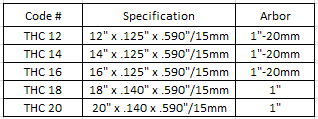

3.HURRICANE, Alternating Standard and Turbo Segments


The new standard in today鈥檚 versatile general purpose blade application, the Hurricane is an aggressive performer in cutting
concrete and masonry. This premium blade operates with alternating turbo and standard 15mm (.590) segments that insure
fast aggressive cutting in a variety of hard materials. The regular segments counter the wear factor of the turbo segments
so the user experiences long life with fast cutting. Can be used wet or dry.


Segment Height 15mm (.590)           Laser Welded

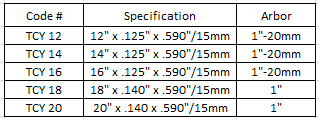

4.CYCLONE, Versatile Premium Slated Segmented



This versatile slant-segment premium blade is designed for superior performance on a wide range of cutting applications. It
is an excellent do-it-all type of combo-blade for the user who cuts a variety of materials on a daily basis, including concrete,
masonry, brick/block, building stones and even asphalt. It is fitted with undercut segments to counter abrasive undercutting
conditions. Can be used wet or dry.


Segment Height 15mm (.590)           Laser Welded

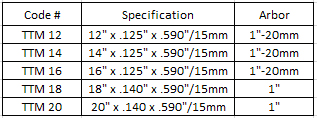

5.TSUNAMI, Split Segmented MULTIPLE CUTTING



The Tsunami is a versatile multi-cut blade with split segments allowing for aggressive cutting on many applications. These
include concrete, concrete pipe, ductile iron pipe, HDPE pipe, cast iron, rebar and angle iron, threaded rod, plastic pipe and
even asphalt. A true cut-it-all premium blade with multiple usage applications. Replaces abrasive blades, carbide blades and
other types of zip blades with diamond cutting performance. Can be run wet or dry.


Segment Height 10mm (.395)           Laser Welded

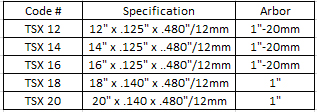

6.SYNTEX, Arix Segmented



SynteX is the new generation in Patterned Diamond Technology where the actual diamonds are precisely arranged and
aligned in the segment. This patented technology delivers the maximum product consistency and significantly improves both
cutting speed and blade life. It is possible to increase cutting speed and blade life by 50% with SynteX blade. Designed for
cutting hard materials like concrete, stone, masonry brick/block, they will even cut green concrete and asphalt with
efficiency. The perfect blade for the contractor who demands the best blade cutting experience for his crew who encounter
a variety of jobs throughout the day. SynteX is a high quality blade for the most economical production.


Segment Height 12mm (.450)         Laser Welded




7.HEAT, DRY CONCRETE CUTTING



Designed for dry cutting of concrete on lower horsepower saws, the Heat line is made for dry cutting concrete in short
cutting applications. When water is not available and cutting concrete is needed, now you have a blade that covers that
application. Short cuttings bursts will allow the air to cool the blades鈥 core. Can also be used wet.

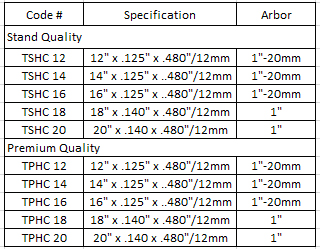

Segment Height 12mm (.480)          Laser Welded





8.HEAT, DRY ASPHALT CUTTING


The Heat dry asphalt blades is designed for cutting asphalt dry on lower horsepower saws. This laser welded blade covers a
variety of asphalt and green cutting applications and employs undercut segments to prevent impact erosion of the core. An
excellent choice when dry cutting is the only option. Great for rental. Can also be used wet.


Segment Height 12mm (.480)          Laser Welded

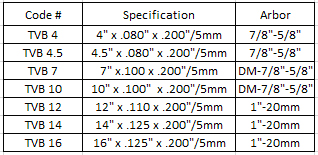

9.TORNADO Vacuum Brazed Blade



The Tornado is a premium vacuum-brazed segmented blade with the rescue/fire/accident designation, but also general
purpose application. Because of the unique design of vacuum brazing the diamond on the outer rim and side of the blade, it
allows the user to cut many metal and plastic materials. Included are angle iron, rod, rebar, iron bars, ductile pipe and cast
iron, HDPE and PVC plastic pipe, metal roof deck, metal sheets, perlings, drywall studs, and even concrete and asphalt.
Comes in a variety of popular sizes from 4" to 16". Replaces the consumption of 80-100 abrasive blades. Can be used wet or
dry.


Segment Height 8mm (.315)            Laser Welded

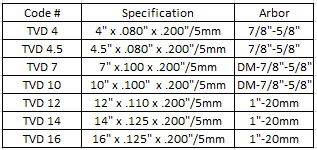

10.TORNADO DUCTILE



The TVD ductile blade is specifically designed to cut ductile iron. This standard turbo-segmented blade has side protection
diamond for help in pipe clearance and eveling edges for processing. The PDT also cuts cast iron, PVD and HDPE pipe and
reinforced concrete. The type of blade will usually outlast 80-100 abrasive blades in similar application.


Segment Height 5mm (.200)            Laser Welded




11.Ring Saw Blade



Whirlwind Ring Saw blades are designed to run on either a hydraulic or gas powered saw. These blades provide excellent
cutting speed and life. All blades come with a new drive wheel at no extra charge. There are 3 specifications to cover most
cutting applications, RST, RSS and RSV. Standard segment blades are laser welded and have a 10mm segment (.395 on
regular blade) and 5mm (.200) on vacuum brazed. Available in 14" x .155 and 14" x .220.
TPRB    Reinforced concrete and general purpose application
TPRS    SynteX precision arrayed diamond for greater increase in speed and life in concrete.
TPRV   Vacuum brazed for cutting ductile iron, cast iron, PVC and HDPE pipe, all types of metal     including rebar, studs, etc. Not available in 14鈥 x .220.
