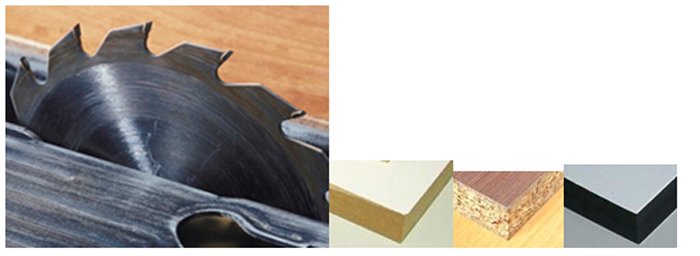

PCD saw blade for molding and grooving



Application: for grooving on the Melamine board, compact board, fancy wood chip board, density board, fireproof panel,
baking varnish panel, etc.

Saw: Horizontal panel saw

Tooth Shape: left-right cross teeth, ladder teeth



Diameter
(mm)

Tooth Width
(mm)

Core Width
(mm)

Arbor
(mm)

Number of Teeth

100

3.2

2.4

20/22

24

120

3.2

2.4

20/22

24

125

3.2

2.4

20/22

24

150

3.2

2.4

30/55/60

36/48

180

3.2

2.4

30/50/55

48

200

3.2

2.4

30/60/80

48

200

4.7

3.2

30/60/80

48

220

3.4

2.4

30

48

250

4.6

3.2

30

48/60

280

5.0

3.5

45

60/84

300

4.5

3.2

30/50/65

72/84

300

4.7

3.2

80

72/84

300

4.9

3.5

65

72/84

340

5.0

3.5

45

72/84
