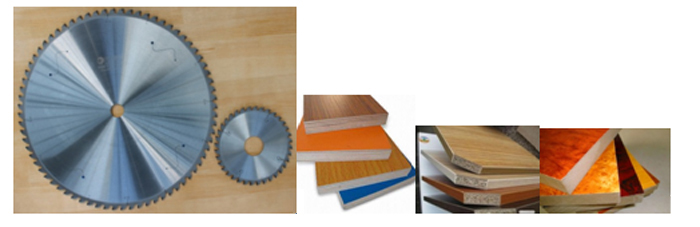

PCD saw blade for laminated board


Application: Apply for Melamine board, compact board, fancy wood chip board, density board, fireproof panel, baking
varnish panel for panel saw cutting, usually used with grooving saw blade. Excellent cutting quality, no edge collapse, can be
used for edge banding. Unique tooth shape and tooth distance design lowered the processing vibration and noise. Each
service life could be 20-30 times more than the carbide saw blade.

Saw: Electronic saws, Reciprocating Panel Saw and Precision Panel Saw

Tooth Shape: ladder teeth



Diameter
(mm)

Tooth Width
(mm)

Core Width
(mm)

Arbor
(mm)

Number of Teeth

300

3.2

2.2

25.4/30

72/84/96

300

3.6

2.4

25.4/30

72/84/96

320

3.2

2.2

25.4/30

72/84/96

320

3.6

2.4

25.4/30

72/84/96

350

3.6

2.4

25.4/30/60/80

84/96

350

4.4

3.0

25.4/30/60/80

84/96

355

3.6

2.4

25.4/30/60/80

84/96

355

4.4

3.0

25.4/30/60/80

84/96

380

4.4

3.2

50/60/65/75/80

84/96

400

4.4

3.2

30/60/65/75/80

84/96

450

4.6

3.2

30/60/65/75/80

84/96

600

5.8

4.0

40/60/80

72/96

730

7

5.0

40/60/80

72/96
