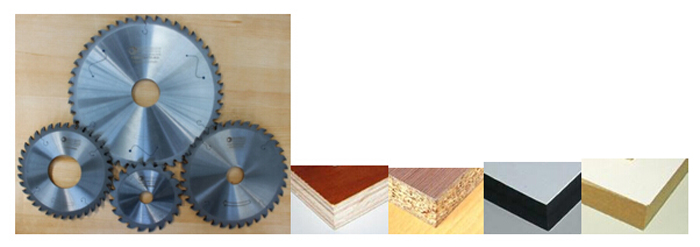

PCD saw blade for
conical teeth grooving
Application: for pre-grooving of laminated
board, especially for the melamine board, compact board, fancy wood chip board,
density board, fireproof panel, baking varnish panel
Saw: Electronic
saws, Reciprocating
Panel Saw and Precision Panel Saw, etc
Tooth form: left-right helical
teeth, cone teeth
|
Diameter
(mm)
|
Tooth Width
(mm)
|
Core Width
(mm)
|
Arbor
(mm)
|
Number of Teeth
|
|
100
|
3.1-4.1
|
2.2
|
20/22
|
20/24
|
|
100
|
3.5-4.5
|
2.4
|
20/22
|
20/24
|
|
120
|
3.1-4.1
|
2.2
|
20/22
|
20/24
|
|
120
|
3.5-4.5
|
2.4
|
20/22
|
20/24
|
|
125
|
3.1-4.1
|
2.2
|
20/22/45
|
20/24
|
|
125
|
3.5-4.5
|
2.4
|
20/22/45
|
20/24
|
|
125
|
4.3-5.3
|
2.8
|
20/22/45
|
20/24
|
|
150
|
3.5-4.5
|
2.4
|
25.4/30/45
|
20/24
|
|
160
|
3.5-4.5
|
2.4
|
25.4/30/45
|
20/24
|
|
160
|
4.3-5.3
|
2.8
|
25.4/30/45
|
20/24
|
|
160
|
4.3-5.3
|
3.0
|
25.4/30/45
|
20/24
|
|
180
|
3.5-4.5
|
2.4
|
25.4/30/45/55
|
36/48
|
|
180
|
4.3-5.3
|
3.0
|
25.4/30/45/55
|
36/48
|
|
180
|
4.3-5.3
|
3.2
|
25.4/30/45/55
|
36/48
|
|
180
|
4.5-5.5
|
3.2
|
25.4/30/45/55
|
36/48
|
|
200
|
4.3-5.3
|
3.2
|
20/25.4/30/45/55
|
36/48
|
|
200
|
4.5-5.5
|
3.2
|
25.4/30/45/55
|
36/48
|
|
200
|
5.7-6.7
|
4.0
|
25.4/30/45/55
|
36/48
|
|
200
|
6.9-7.9
|
5.0
|
25.4/30/45/55
|
36/48
|
|
220
|
6.9-7.9
|
5.0
|
20/25.4/30/45
|
36/48
|
|
250
|
6.9-7.9
|
5.0
|
20/25.4/30/45
|
36/48
|
|
