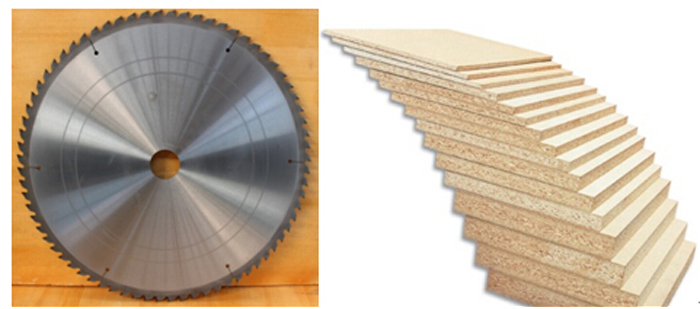

PCD Saw Blade for Chip board
Application:For all
kinds of chip board, vertical or cross cutting. Perfect cutting
edge, no black cutting and collapse, less
resistance, low noise, it can
continually working for 25 days or more.
Saw:Transverse and longitudinal chip-board cutting equipment.
Tooth Shape:Sharp teeth (500mm or
smaller), ladder teeth (diameter over 500mm).
|
Diameter
(mm)
|
Tooth Width
(mm)
|
Core Width
(mm)
|
Arbor
(mm)
|
Number of Teeth
|
|
250
|
3.6
|
2.4
|
25.4/30/60
|
60/72/96
|
|
250
|
4.4
|
2.8
|
25.4/30/60
|
60/72/96
|
|
300
|
3.6
|
2.4
|
25.4/30/60/80
|
60/72/96/120
|
|
300
|
4.4
|
2.8
|
25.4/30/60/80
|
60/72/96/120
|
|
305
|
3.6
|
2.4
|
25.4/30/60/80
|
60/72/96/120
|
|
305
|
4.4
|
2.8
|
25.4/30/60/80
|
60/72/96/120
|
|
320
|
3.6
|
2.4
|
25.4/30/60/80
|
60/72/96/120
|
|
320
|
4.4
|
2.8
|
25.4/30/60/80
|
60/72/96/120
|
|
350
|
3.6
|
2.4
|
25.4/30/60/80
|
60/72/96/120
|
|
350
|
4.4
|
3
|
25.4/30/60/80
|
60/72/96/120
|
|
355
|
3.6
|
2.4
|
25.4/30/60/80
|
60/72/96/120
|
|
355
|
4.4
|
3
|
25.4/30/60/80
|
60/72/96/120
|
|
380
|
4.4
|
3.2
|
25.4/30/60/80
|
72/96/120
|
|
400
|
4.4
|
3.2
|
25.4/30/60/80
|
72/96/120
|
|
450
|
4.4
|
3.2
|
25.4/30/60/80
|
72/96/120
|
|
500
|
4.4
|
3.2
|
30/60/80
|
72/96/120
|
|
500
|
4.8
|
3.5
|
30/60/80
|
72/96/120
|
|
530
|
4.8
|
3.5
|
30/60/80
|
72/96/120
|
|
530
|
5.6
|
3.8
|
30/60/80
|
72/96/120
|
|
570
|
4.8
|
3.5
|
30/60/80
|
72/96/120
|
|
570
|
5.6
|
3.8
|
30/60/80
|
72/96/120
|
|
600
|
5.8
|
4
|
60/80/100
|
72/96/120
|
|
630
|
5.8
|
4
|
60/80/100
|
72/96/120
|
|
670
|
6
|
4.2
|
60/80
|
72/96/120
|
|
700
|
7
|
5
|
60/80
|
72/96/100
|
|
730
|
7
|
5
|
60/80
|
72/96/100
|
|
750
|
7
|
5
|
60/80
|
72/96/100
|
|
